#10082J كمبروسر مكيف ساندن عام /COMPRESSOR SANDEN UNIVERSAL 7PK 12V DM

#10082J

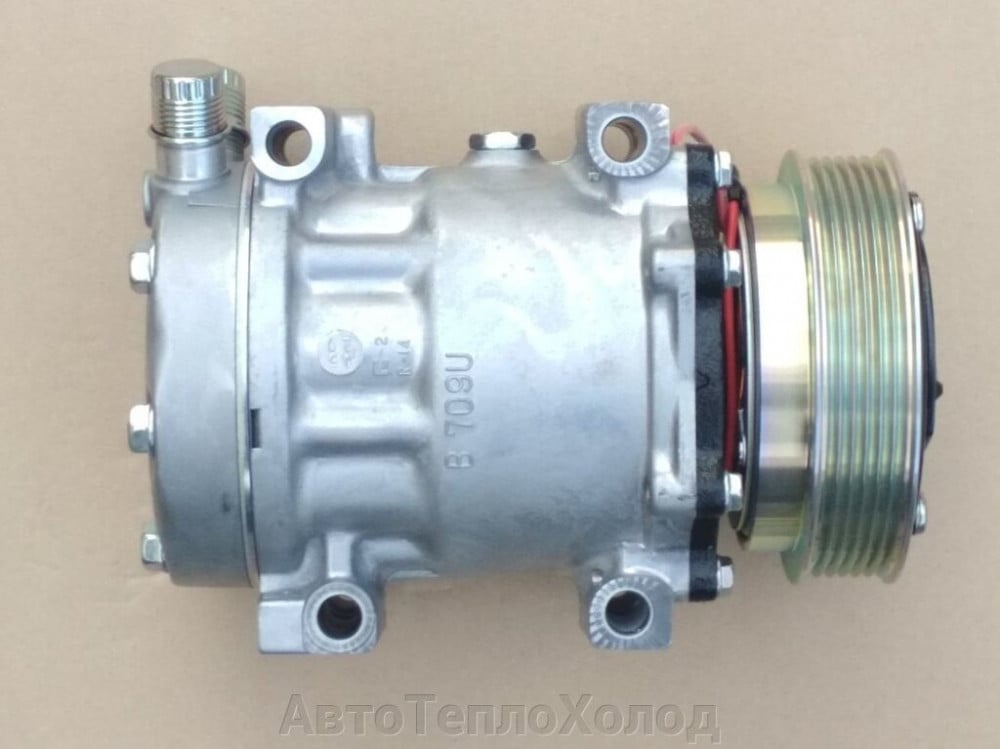

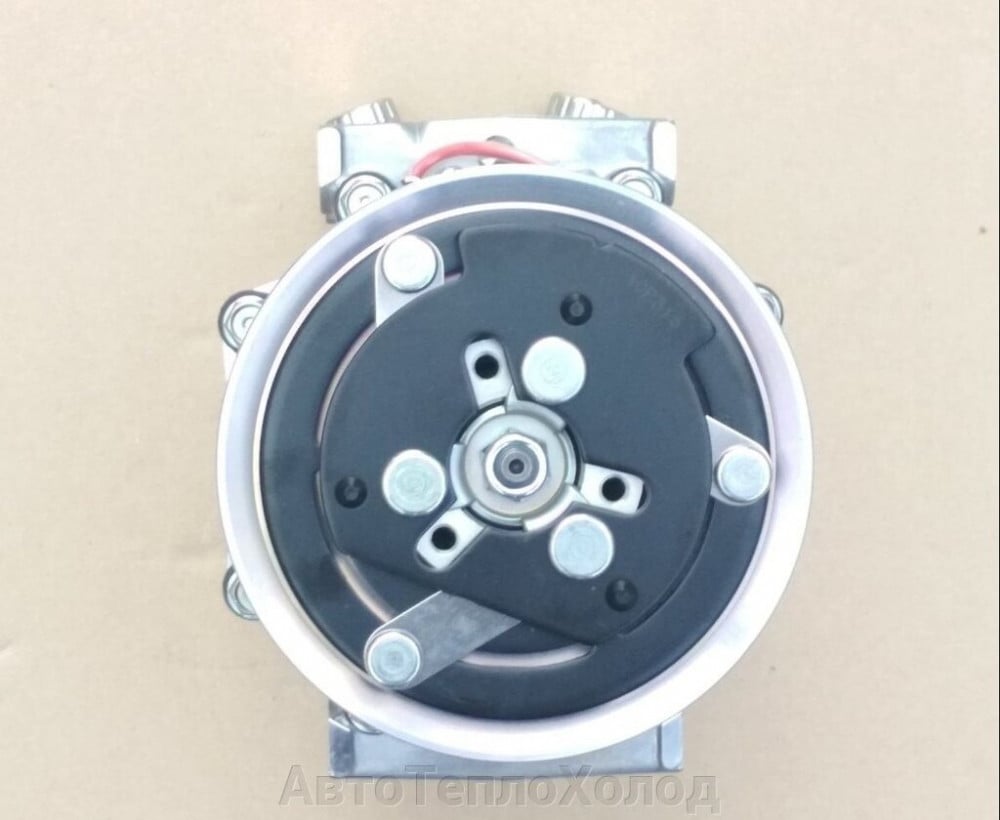

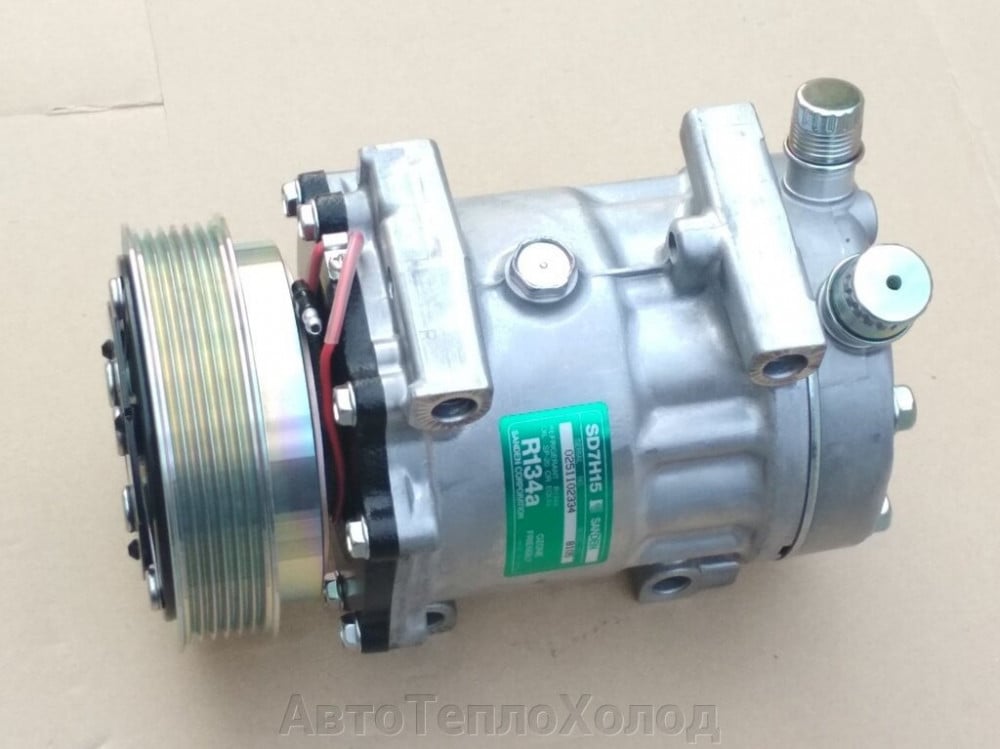

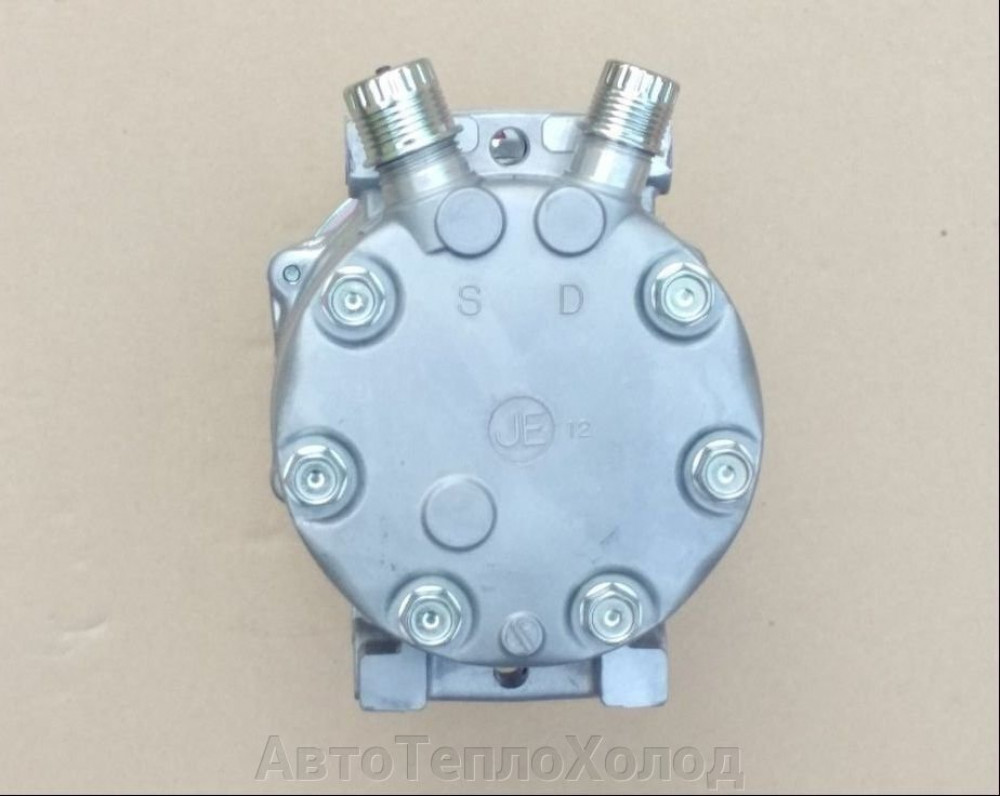

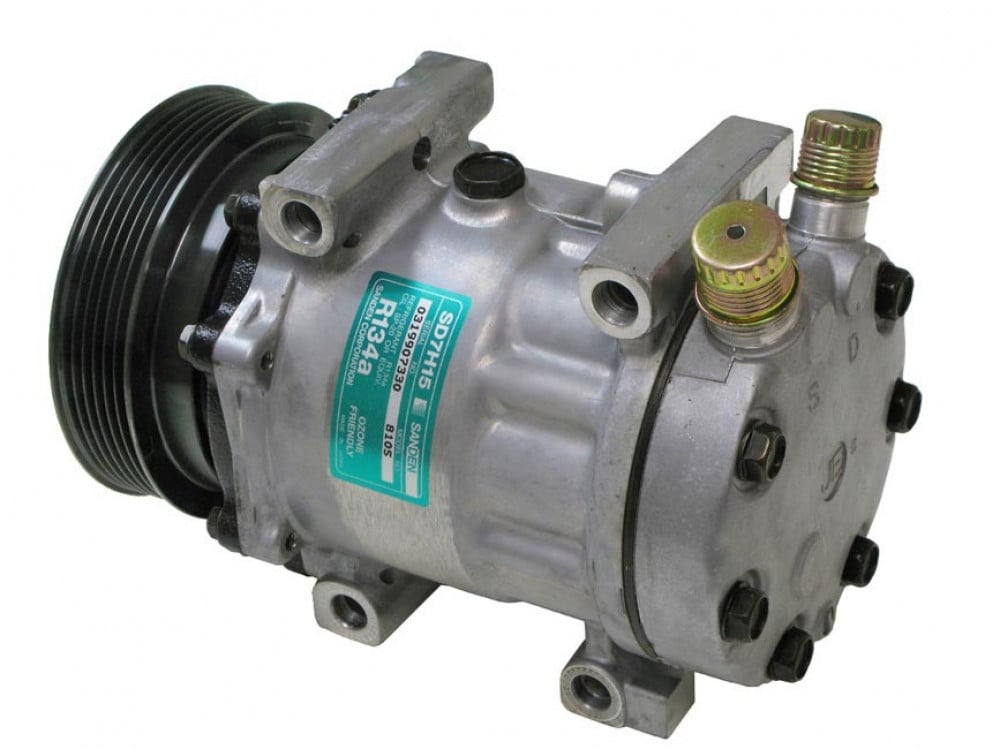

COMPRESSOR SANDEN SD7H15-8105 7 PISTON DIRECT MOUNT 12 V PK-8

mounting upper 101mm bottom 91mm

MADE IN JAPAN

كمبروسر ساندن 7 بستون 7 خط صناعه ياباني

قاعدو التركيب العلويه 101ملم السفلية 91 ملم

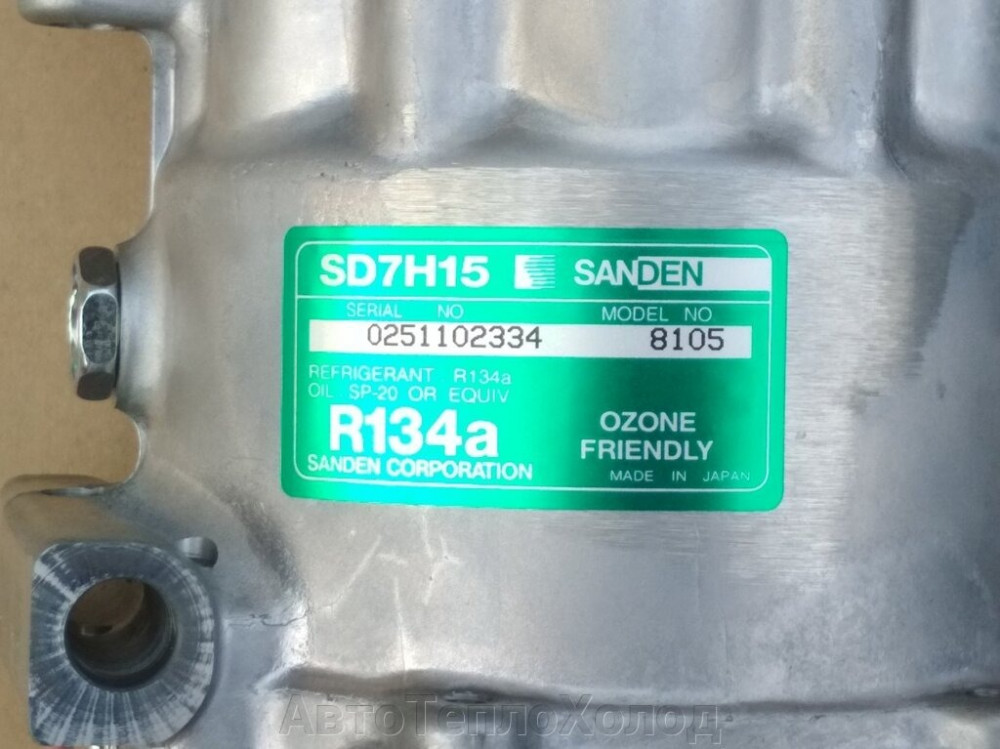

Sanden Model/s #: 4628, 7416, 7501, 8105

Description: OEM Sanden Compressor SD7H15 4628, 119mm, 12V, 6 Grooves

OEM #: 8FK 351 119 091

Compressor Family: SD7H15

Style: HD

Mount Type: SD7 Direct Ford

Ear ID: T90 B78

Refrigerant: R134A

Displacement: 155.00

Rotation Direction: CW

Oil Qty (cc): 240

Oil Type: PAG 100

Cylinder Head: JD

Port Angle: V

Port Clocking: 12:00

Head Port Style: 3/4X7/8

Rotor Size: 119

Rotor Groove: PV6

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Gauge Line to First Groove: 53.60

Gauge Line to Middle Groove: 62.50

Gauge Line to End Groove: 71.40

Coil Voltage: 12

Connector: 1 Wire Male Bullet

Shaft Type: Long Key Shaft

Diode Protection: None
