#10170W صفايو مكيف فريون فيات وشيروكي l RECEIVER DRIER FIAT UNO W-VALVE

#10170W

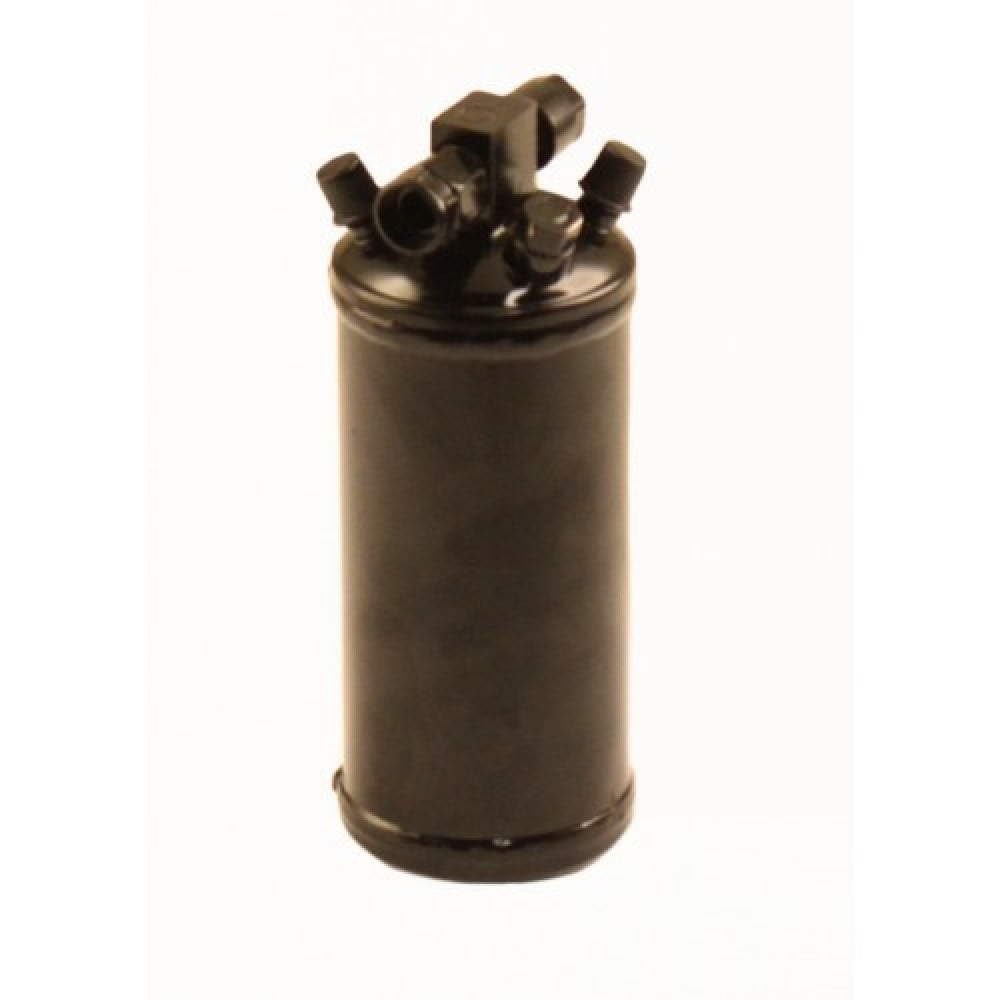

Drier-for Fiat Uno

Introduction

Suits:for Fiat Uno (R134a) Fittings:2 x 3/8(NO.6)M.O. Height:214 mm Dia:63.5 mm *1 quick coupler right of inlet *1 switch plug left of inlet

Material

• Steel

Car Company

• Fiat

Specification

The purpose of the drier is to remove the dirt as well as moisture from the refrigerant, and to separate gas and liquid.

The receiver drier is used in the high pressure liquid line, between the condenser outlet and the expansion valve inlet.

1. Absorb and hold moisture
2. Remove particles or debris
3. Also acts as a reservoir for compressor oil and refrigerant

MADE IN TAIWAN
